The Bariatric Sked Stretcher is designed to move obese patients through difficult areas with less risk of injuring your back. It is 4 feet wide, a full 12 inches wider than the standard Sked. It is a full 8 feet long. It is made of a very tough non-absorbing polyethylene plastic. This will allow for containment of the very large patients inside the stretcher thus preventing possible injuries to them from being moved. It functions just as the standard Sked. It is dragged over whatever terrain the patient is in. It can be dragged up a ramp to the floor of the ambulance or hoisted onto a bariatric gurney.
It has a pair of lift slings that are long enough to accommodate nearly any size patient. They are used to hoist the patient onto a bariatric gurney for transport in the ambulance. Along with the slings there is also included a large steel carabiner that has a minimum break strength of 9,000 pounds that is used to join the sling ends together and clipped into the hoist mechanism. There is also a tow strap included to allow two more people to assist in dragging.

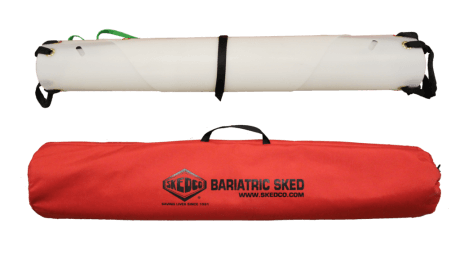

Rolled in cordura pack — 10in. diameter x 48in. length

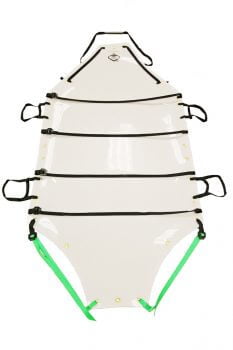

Laid out flat — 4 feet x 8 feet
17 pounds (Weight Capacity – 1,200 pounds)
medium density E-Z glide polyethylene plastic, 1/10th of an inch thick.
** Nylon webbing
** Solid brass grommets
** Steel buckles
** Usable to -120 degrees F without becoming brittle.
Horizontal Lift Slings:
Webbing tensile strength 9,000 lbs.
Replacement parts for the SK-260 Bariatric Sked® Stretcher System:
