Our popular Portable Tank System with the added strength and reliability of self-contained hydraulic actuators. These hydraulic actuators create a stronger, more rigid system, allowing for the direct mounting of a hard cover and a single hard sleeve to the tank box without the need for additional hardware/adapter kits.

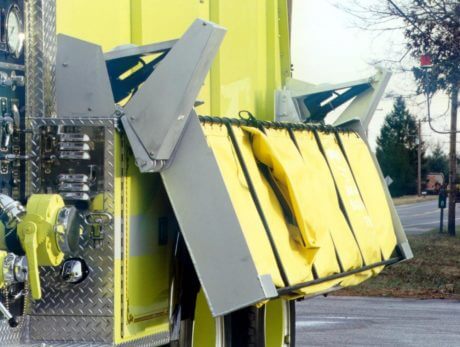

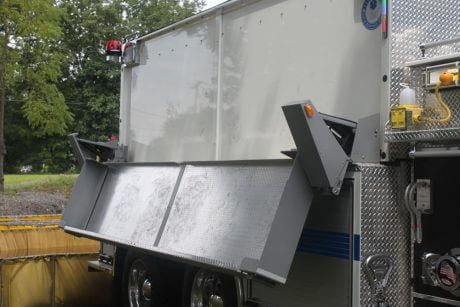

The PTS-HA securely stores a portable tank over the side compartments of an apparatus and lowers to a convenient height at the flip of a switch for quick, easy, and safe retrieval. System is capable of securely stowing portable tanks up to 36? high by 9? wide when collapsed, including virtually all popular brands such as Husky and FOL-DA-TANK. Please specify the make and model of your tank when ordering.
Requires mounting surface equal to length of collapsed tank plus 21? (10-1/2? per device). Requires a minimum shelf width of 8-1/2?. Total depth of system is 9-3/4?. Sustains a maximum load of 500lbs. Optional Center Hinge Kit, PTS-HA-CH, provides additional support for longer tanks and hard covers.
Easily installed onto new or existing apparatus; an adapter plate is available for mounting beside elliptical tanks. Includes NFPA compliant flashing light kit that activates when system is out of stored position. Hard sleeve mounting kit sold separately.
Specify make and model of tank when ordering.
