Trident now offers a complete line of Wildland Products for plumbing suction and discharge manifolds, new lightweight aluminum fittings and adapters, and a simple-to-install and use Class A Foam proportioner.

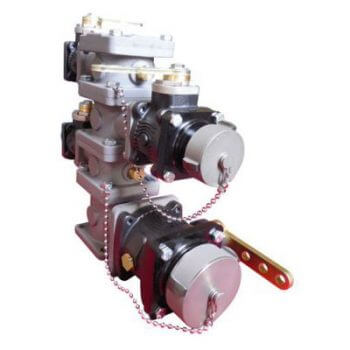

Lightweight Plumbing Manifold System
Our bolt-together hardcoat anodized aluminum manifold sections eliminate welding, leaks and forming costs. Components include: bolt-together suction and discharge manifolds with o-ring seals; bolt-on aluminum valves or thread-on nickel-plated brass valves; and all valve ends for hose, pipe, or Vic connections. Start with any pump and combine our suction and discharge manifold systems, for a complete Wildland vehicle plumbing solution.
Manifold Features & Benefits
- Aluminum Hard Anodized
- Bolt-Together Assembly
- Bolt Directly to Pump Discharge
- O-Ring Seals Between Sections—No Welding—No Leaks
- Bolt-on Manifold End Caps
- Manifolds for 1”,1.5”,2”,2.5” Valves
- Easy to Customize design
- Consistent assemblies for Multiple trucks
- 3/8” manifold ports for drains or Thermal Relief Valve
- Bolt-on Aluminum or Thread-on Brass Valves
Bolt-On Valve Features & Benefits
- 4-Bolt Swing-Out Type Valves
- Hard Coat Anodized Body
- Stainless Steel Ball
- Replaceable Ball Seats
- Bolt-On Valve Ends
- NPT, NH, NPSH or Vic Ends
Thread-On Valve Features & Benefits
- NPT Threaded Ball Valves
- Brass Body with Nickel Plating
- Chrome-Plated Brass Ball
- Teflon Ball Seats
- Rated to 375-PSIG
- Thread-On Valve Ends
- NPT, NH, NPSH or Vic Ends
Lightweight Aluminum Adapters
Our new line of hose fittings and adapters are designed specifically for Wildland use.
Features & Benefits
- Rocker Lug Design
- Ball Type Retention Chain
- Complete Size Selection
- Hard Anodized Finish Aluminum
- Lightweight and High Strength
- Garden Hose Thread (GHT) Adapters
- All Vented, Equalizer™ Threads (except GHT)
- NH and NPSH Threads

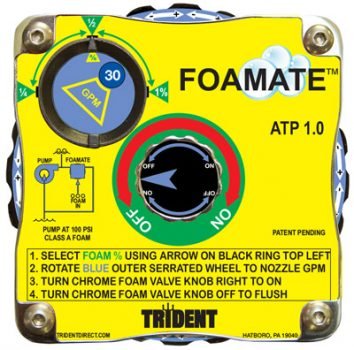

FOAMATE™ Class A Foam Proportioner
Our FOAMATE™ Model ATP 1.0 around-the-pump Class A foam proportioner was specifically designed for the Wildland market and easy, user-friendly operation. It has all-brass body construction and connections, an integral foam shut-off and a built-in check valve. It’s perfect for quick retro-fit installations!
Features & Benefits
- All-brass body construction and connections
- Maximum pressure 600 PSI
- GPM flow range: up to 400 GPM
- Simple operation and training
- Perfect for retro-fit installation on existing units
- Quick to install – under one hour
- Two cleanable strainers included
- Panel or bracket mounting
- Brass metering valve with EPDM rubber replaceable foam compatible seals
- Integral check valve to prevent “backflow” of foam into the water supply
- Compact control panel, 4″ high x 4″ wide x 4″ deep
- Valve body and metering valve mounted behind panel (when panel mounted)
- Chrome plated control panel, with integral polycarbonate label for operating instructions and foam diagram
- Performance Range at 100 PSI (6.9 Bar):
- 400 GPM (1500 LPM) at 0.25%
- 200 GPM (750 LPM) at 0.50%
- 100 GPM 9375 LPM) at 1.0%
