15″ Width Swing Out & Down Vehicle Ladders

https://w3q9s4f2.stackpathcdn.com/product-img/11694/cache//RL15-brush-scaled/3918638027.jpg
15″ Width Swing Out & Down Vehicle Ladders
RL15_1
RL15_2
RL15_3
RL15_7

Made to order. Built to last.

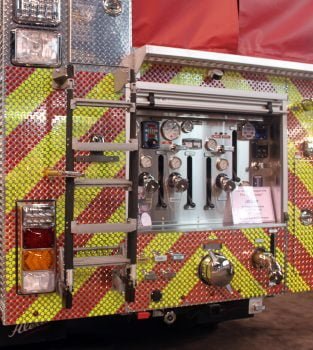

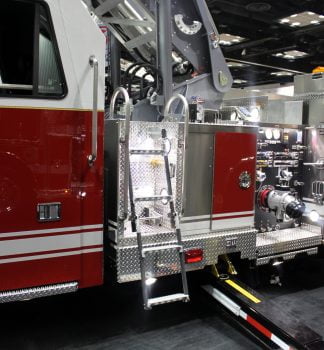

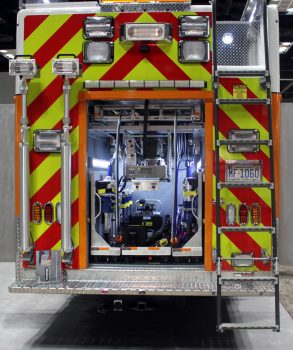

Store ladder parallel to apparatus body. Release the locking handle and pull the ladder out to a comfortable climbing angle when needed. The ladder automatically latches and will not retract until the scissor lock is raised.

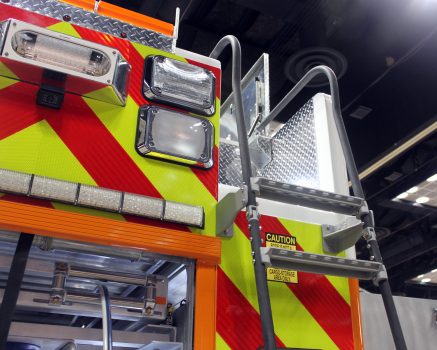

3″ deep cast aluminum rungs have a flat, non-skid surface for traction and safety. Handrails are 1-1/4″ heavy-walled aluminum tubing, covered in a rough-grip black powder-coat.

Ladders are custom-made to fit your truck. Provide us with a rear-end dimensional drawing of your vehicle and we will design a ladder to meet your individual needs.

Available Models:

RL15-1-3: One step fold-down and three step straight section

RL15-1-4: One step fold-down and four step straight section

RL15-1-5: One step fold-down and five step straight section

RL15-1-6: One step fold-down and six step straight section

RL15-1-7: One step fold-down and seven step straight section

RL15-1-8: One step fold-down and eight step straight section

RL15-2-2: Two step fold-down and two step straight section

RL15-2-3: Two step fold-down and three step straight section

RL15-2-4: Two step fold-down and four step straight section

RL15-2-5: Two step fold-down and five step straight section

RL15-2-6: Two step fold-down and six step straight section

RL15-2-7: Two step fold-down and seven step straight section
